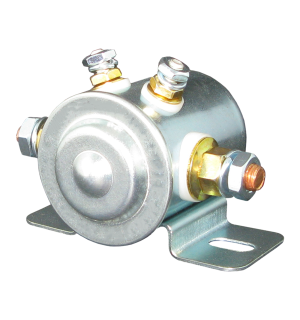

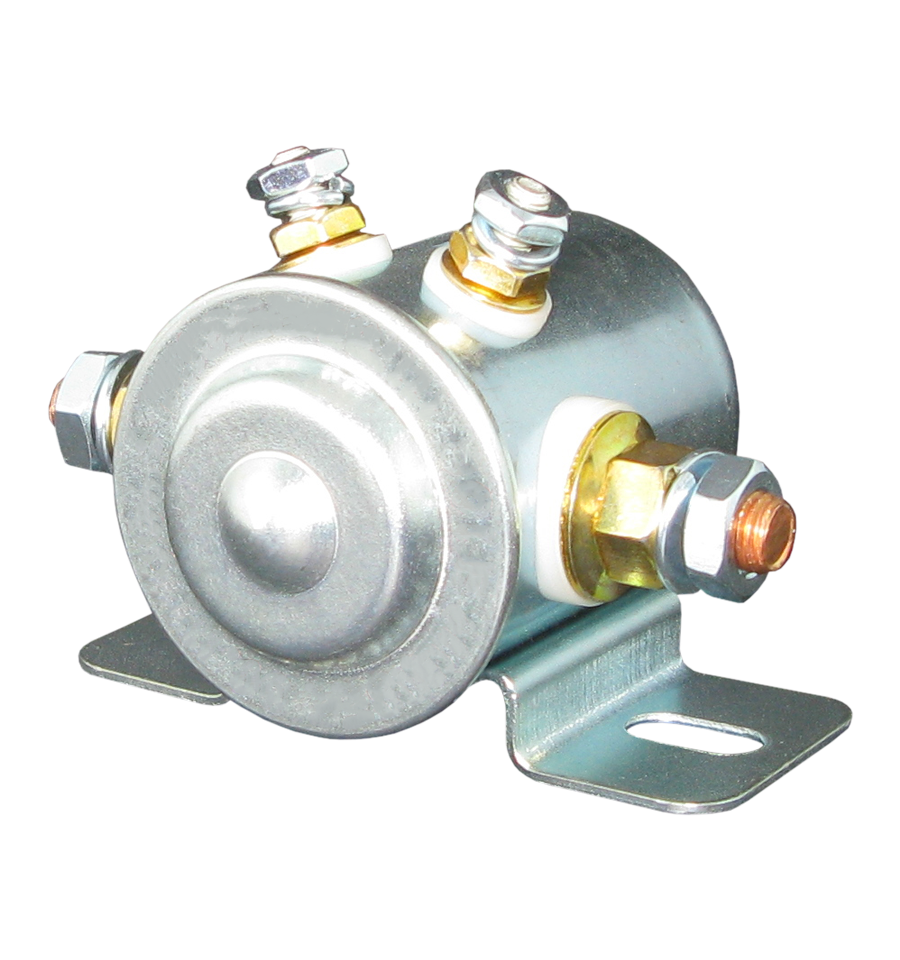

12V 85A Continuous Duty Solenoid

Sold Individually

#24059

12V, 85A continuous duty solenoid.  SPST (single circuit) solenoid with insulated earth stud.


Product Specifications
  • 12V, 85A continuous
  • Steel housing, nuts and washers
  • Copper stud terminals 5/16″
  • Insulated coil terminals 10-32
  • 8mm mounting holes, 56mm centre – centre
  • Intermittent rating 10 seconds ON, 30min OFF
  • 750A make, 100A break
  • Copper Contacts



pdficon_small  Download Specsheet
