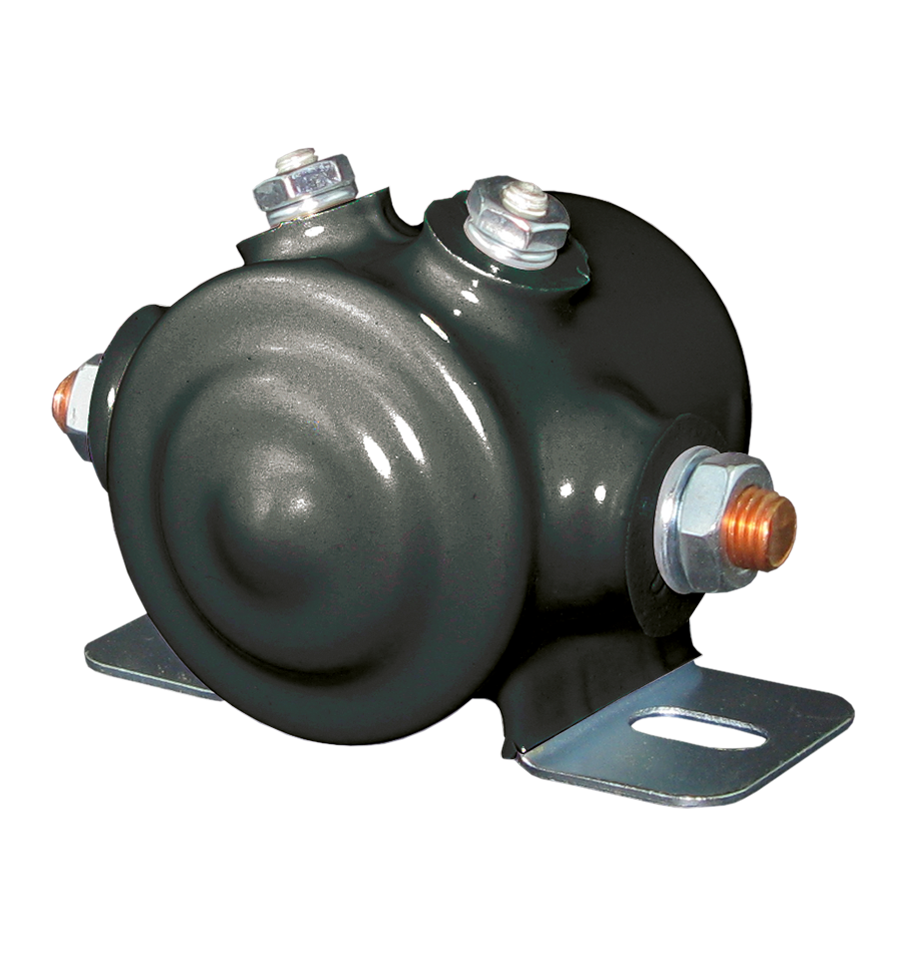

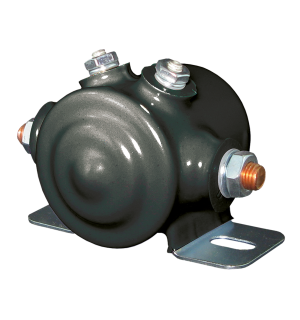

24V 65A Continuous Duty Solenoid with PVC Coating
Sold Individually
#24063-08
24V, 65A continuous duty solenoid. PVC dipped housing specifically designed for marine applications. SPST (single circuit) solenoid with insulated earth stud.
Product Specifications
- 24V, 65A continuous
- PVC dipped steel housing
- Copper stud terminals 5/16″
- Insulated coil terminals 10-32
- 8mm mounting holes, 56mm centre – centre
- Intermittent rating 10 seconds ON, 30min OFF
- 120A make, 65A break
- Copper Contacts
- ISO 8846 UL Marine Listed
Download Specsheet
