Deutsch 12 Pin DT Series Complete Connector Kit

Complete Kit

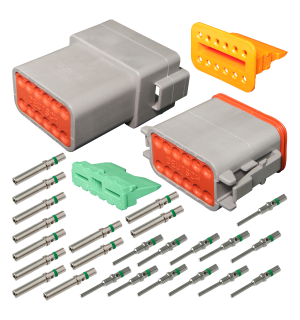

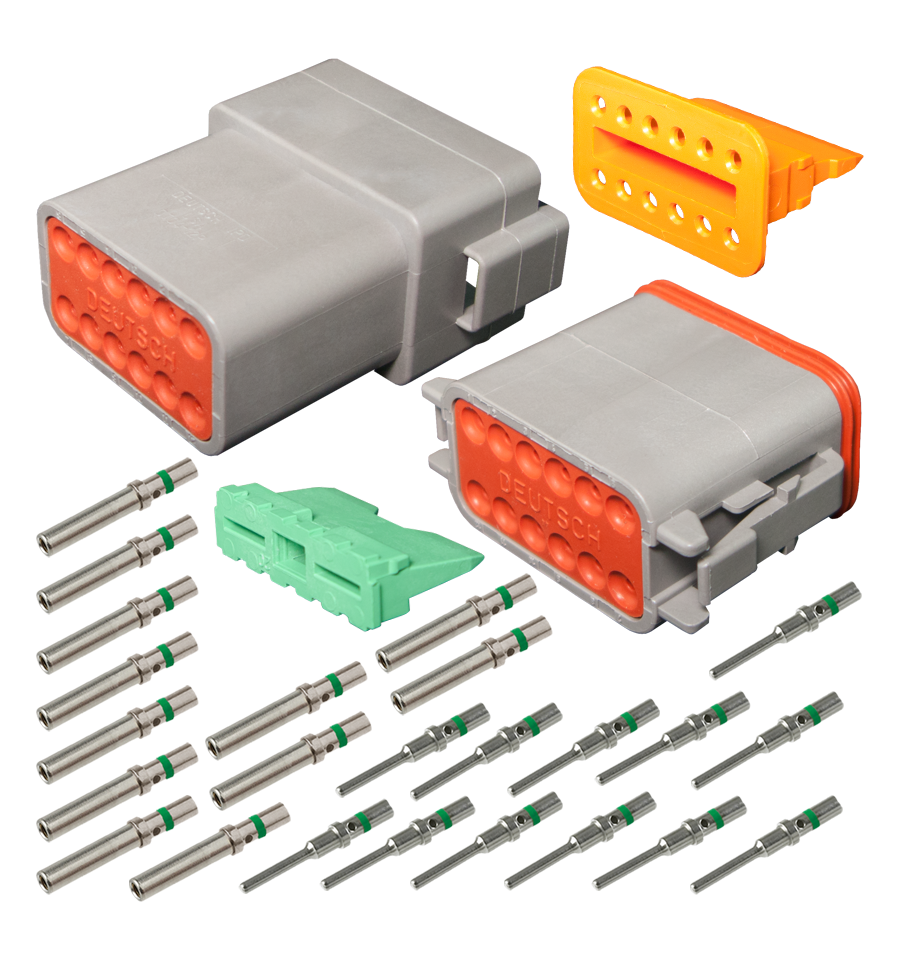

12 circuit DT Series Deutsch connector kit. Complete with male and female housings, wedges and terminals. Deutsch DT Series of environmentally sealed connectors are designed specifically for cable to cable applications on the engine or transmission, under the hood, on the chassis or in the cab. Where signal level circuits in harsh environmental conditions, where even a small degradation in connection may be critical, the Deutsch DT Series general purpose connectors will provide the reliability and performance at the lowest cost.

Product Specifications
  • Rated to IP68 Specifications
  • Contact Rating 13A @ 125 degees C per contact
  • Operating Temperature -55C to 125C
  • Thermoplastic Housing
  • Silicon Rubber Seals
  • Vibration 20G at rms 10-2000Hz.


pdficon_small  Download Specsheet
