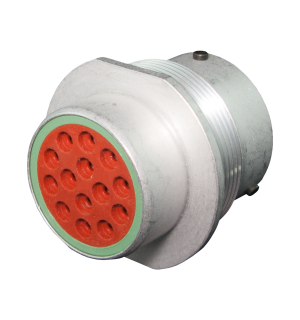

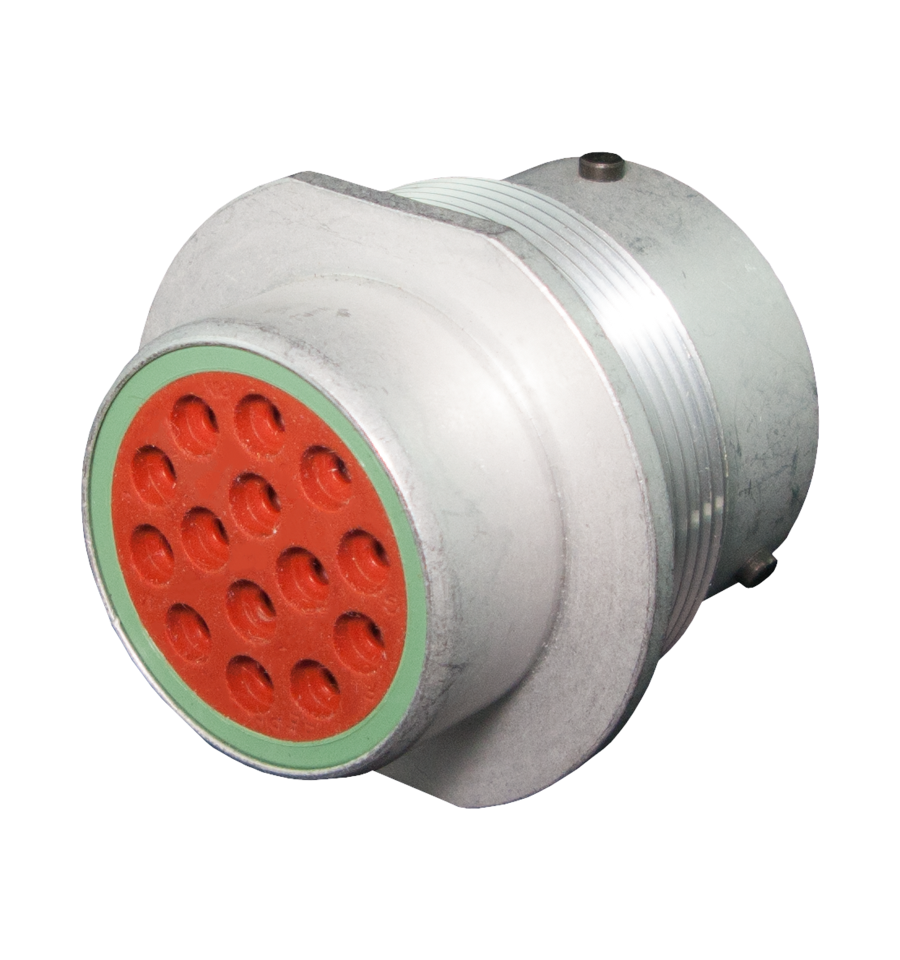

Deutsch HD30 Series Receptacle with Size 18 Shell - 14 Circuit Takes Sockets

Sold Individually

#HD34-18-14SN

Deutsch HD30 Series Receptacle. Size 18 shell or 38mm diameter. Contains 14 size 16 sockets rated at 13A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 14 x Size 16 pins rated at 13A per circuit at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Vibration 20G rms 10-2000Hz
