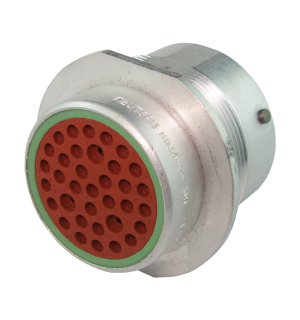

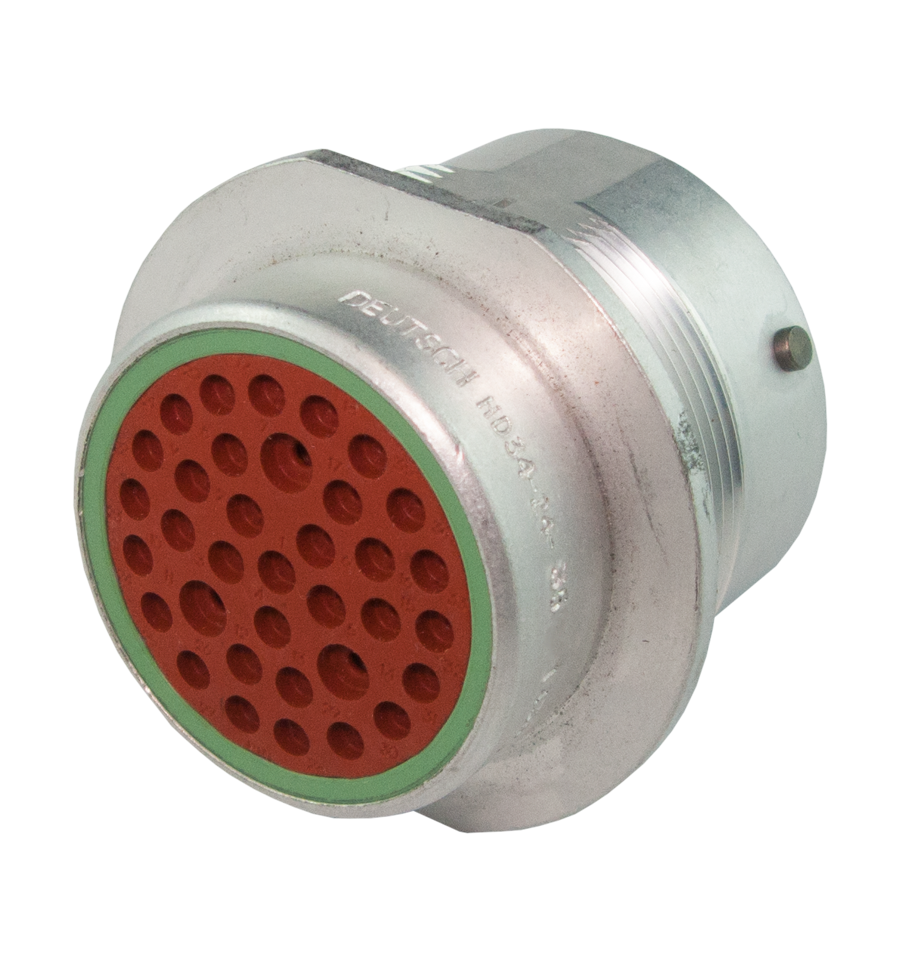

Deutsch HD30 Series Receptacle with Size 24 Shell - 35 Circuit - Takes Sockets

Sold Individually

#HD34-24-35SN

Deutsch HD30 Series Receptacle. Size 24 shell or 43mm diameter. Contains 3 size 16 sockets and 32 size 20 sockets. Size 16 contacts are rated at 13A per circuit. Size 20 contacts are rated at 7.5A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 3 x Size 16 sockets rated at 13A per circuit at 125C, 32 Size 20 sockets rated at 7.5A at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Shock 50G
  • Vibration 20G rms 10-2000Hz



pdficon_small  Download Specsheet
