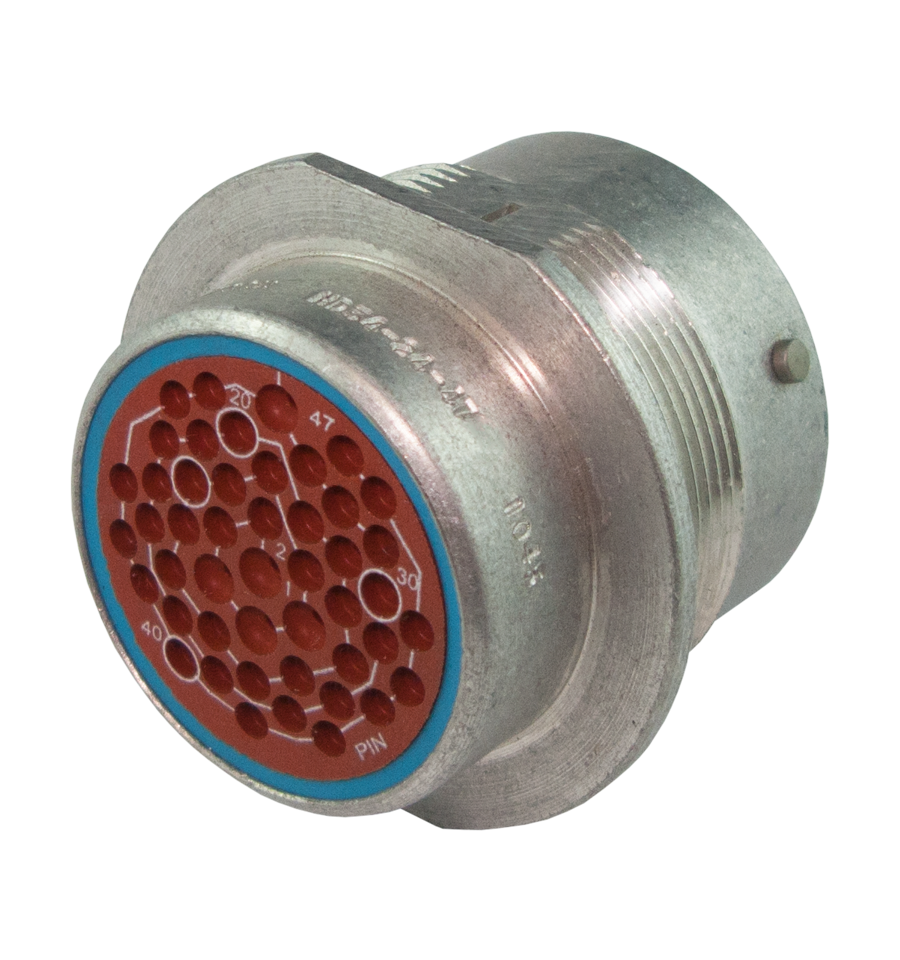

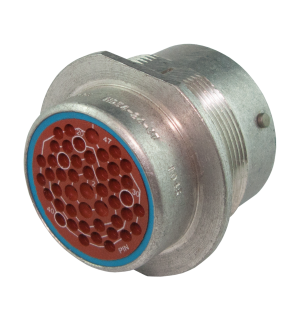

Deutsch HD30 Series Receptacle with Size 24 Shell - 47 Extra Thin Walled Circuits - Takes Pins

Sold Individually

#HD34-24-47PE

Deutsch HD30 Series Receptacle. Size 24 shell or 43mm diameter. Contains 5 size 16 pins and 42 size 20 pins. Size 16 contacts are rated at 13A per circuit. Size 20 contacts are rated at 7.5A per circuit. This connector is specially designed for use with extra thin walled cables. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 5 x Size 16 pins rated at 13A per circuit at 125C, 42 Size 20 pins rated at 7.5A at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Shock 50G
  • Vibration 20G rms 10-2000Hz
